• Continuous Force Range 26 - 116 (N)
  • Peak Force Range 100 - 400 (N)
  • Speeds @ 300 Volts max - up to 18 (m/s)
  • Motor Size 21.1(w) x 68(h) (mm)
  • Magnet Pitch NN τ 30 (mm)

Product Description

UM Series of Ironless Linear motors

Introducing the UM Series Ironless linear motor by Tecnotion, a cutting-edge high-precision linear motor designed to excel even in the most demanding industrial conditions. With its robust construction, this motor is perfectly suited for a variety of industries. Leveraging direct drive technology, the UM Series enhances productivity, accuracy, and dynamic performance. By eliminating the need for mechanical transmissions such as rack and pinion, belts, and speed reducers, direct drive motors offer unparalleled efficiency. Furthermore, the absence of contact between the coil unit and magnets ensures zero mechanical wear. This advanced technology enables slimmer and modular designs, while reducing costs. The UM Series sets a new standard with its exceptional precision, durability, and versatility, making it the ideal choice for a wide range of industrial applications.

Ironless Linear Motor

The UM Series of ironless linear motors from Tecnotion, offering a precision motion solution for various applications. These motors excel in delivering exceptional precision and accuracy motion. They prove to be ideal for demanding tasks where precision is required. Ironless linear motors also exhibit efficient This feature prevents overheating and contributes to prolonging the motor's lifespan. Overall, the implementation of ironless linear motors, provides a reliable and efficient solution suitable for a wide range of applications that demand both precision motion solution with zero cogging..

Applications for Linear Motors

Precision linear stages play a critical role in various applications that necessitate high levels of accuracy and precision. These motors are frequently utilized in industries such as laser cutting, scanning, digital printing, and electronics assembly and inspection. They are also deployed in processes such as AOI (Automatic Optical Inspection) and laser micro-machining, which demand ultra precision and accurate scan motion. In medical and scientific equipment, precision linear stages are pivotal in ensuring accuracy and repeatability. In any industry or application, utilizing precision linear stages is crucial for achieving desired outcomes and delivering top-quality output.

Specifications UF Series

UM Series Spec

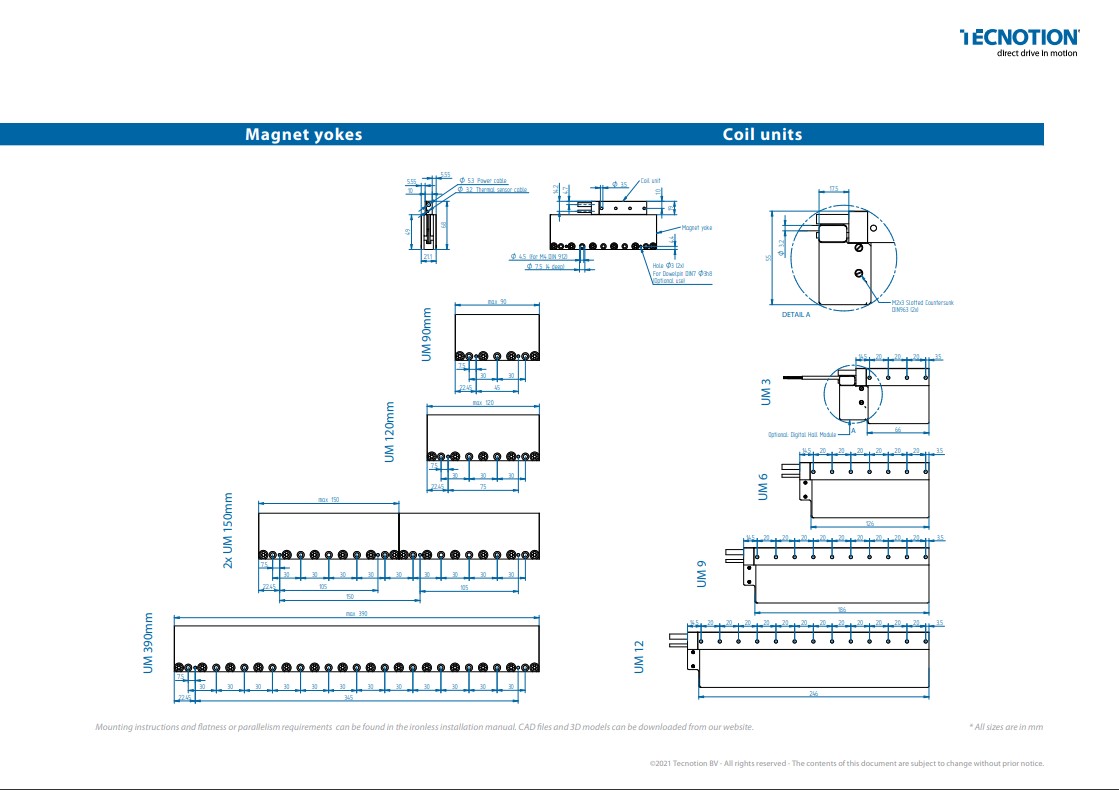

UM Series DWG

Related Products

UC Series
  • Continuous Force Range 10 - 20 (N)
  • Peak Force Range 36 - 72 (N)
  • Speeds @ 60 Volts max 5 (m/s)
  • Motor Size 14.8(w) x 51(h) (mm)
UF Series
  • Continuous Force Range 19.5 - 39 (N)
  • Peak Force Range 42.5 - 85 (N)
  • Speeds @ 60 Volts max 5.1 (m/s)
  • Motor Size 16.5(w) x 53(h) (mm)
UL Series
  • Continuous Force Range 70 - 350 (N)
  • Peak Force Range 240 - 1200 (N)
  • Speeds @ 300 Volts max - up to 12 (m/s)
  • Motor Size 28.4(w) x 105(h) (mm)
UXA Series
  • Continuous Force Range 615 - 3690 (N)
  • Peak Force Range 120 - 3690 (N)
  • Speeds @ 300 Volts max - up to 7.2 (m/s)
  • Motor Size 38(w) x 124.8(h) (mm)
UXX Series
  • Continuous Force Range 141 - 846 (N)
  • Peak Force Range 700 - 4200 (N)
  • Speeds @ 300 Volts max - up to 5.1 (m/s)
  • Motor Size 48(w) x 124.8(h) (mm)
