Motor Products - Ironless Linear, Iron Core Linear and Torque, custom solutions available.

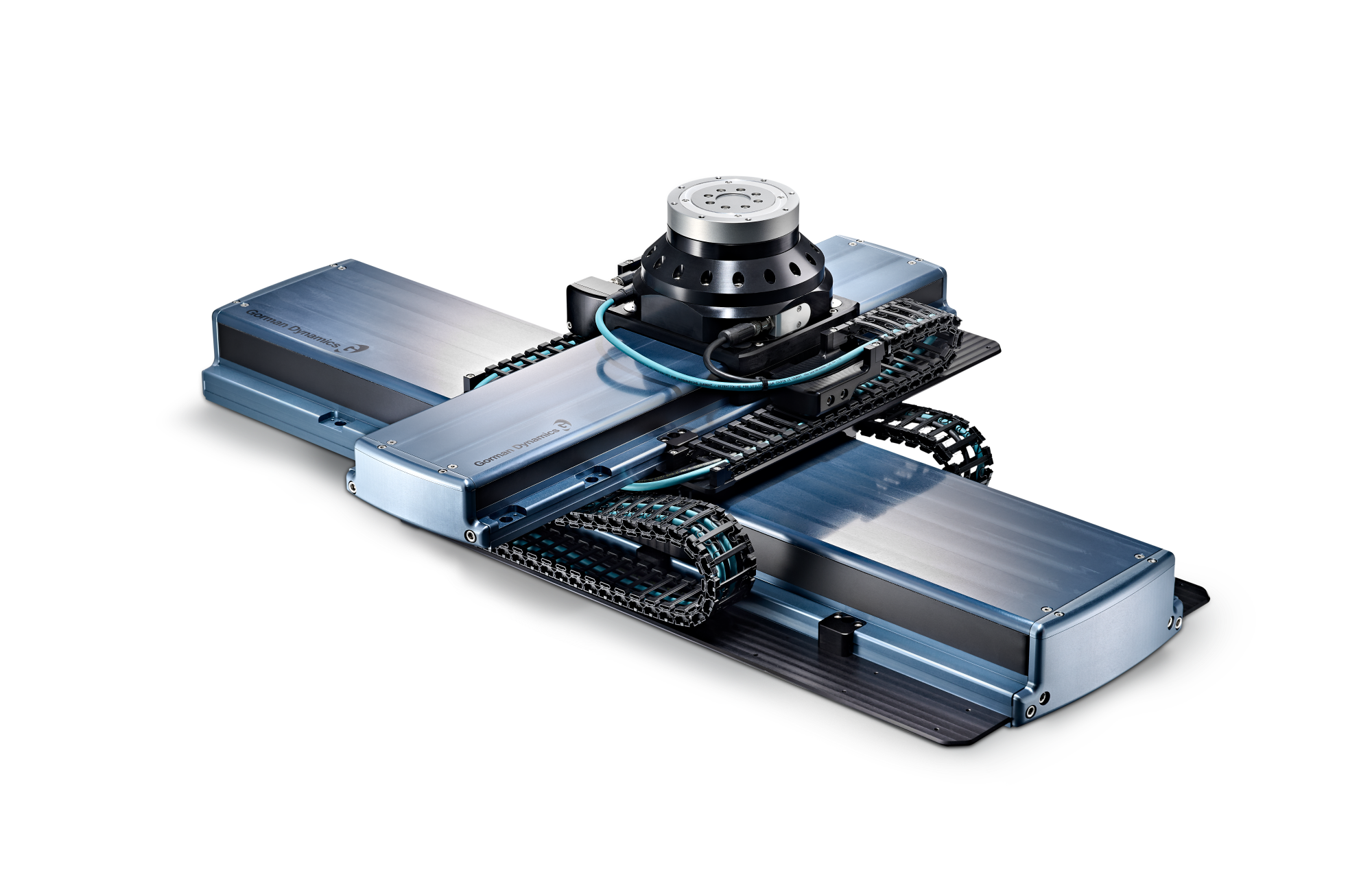

Gorman Dynamics offers direct drive technology, a perfect solution for enhancing productivity, accuracy, and dynamic performance. By utilizing torque and linear motors, the technology eliminates the need for mechanical transmissions such as rack and pinion, belts, and speed reducers. With no contact between the coil unit and magnets, mechanical wear is eliminated. This advanced technology enables slimmer and modular designs while reducing costs. Implementing Gorman Dynamics' supplied direct drive technology allows for improved efficiency and performance while minimizing maintenance and operational expenses. Experience the benefits of this innovative solution, transforming your systems into more streamlined, cost-effective, and reliable designs.

Ironless Linear Motors - High Accuracy

UC Series

Ironless UC Series

Continuous Force Range 10 - 20 (N)
Peak Force Range 36 - 72 (N)
Speeds @ 60 Volts max 5 (m/s)
Motor Size 14.8(w) x 51(h) (mm)

UF Series

Ironless UF Series

Continuous Force Range 19.5 - 39 (N)
Peak Force Range 42.5 - 85 (N)
Speeds @ 60 Volts max 5.1 (m/s)
Motor Size 16.5(w) x 53(h) (mm)

UM Series

Ironless UM Series

Continuous Force Range 26 - 116 (N)
Peak Force Range 100 - 400 (N)
Speeds @ 300 Volts max - up to 18 (m/s)
Motor Size 21.1(w) x 68(h) (mm)

UL Series

Ironless UL Series

Continuous Force Range 70 - 350 (N)
Peak Force Range 240 - 1200 (N)
Speeds @ 300 Volts max - up to 12 (m/s)
Motor Size 28.4(w) x 105(h) (mm)

UXA Series

Ironless UXA Series

Continuous Force Range 615 - 3690 (N)
Peak Force Range 120 - 3690 (N)
Speeds @ 300 Volts max - up to 7.2 (m/s)
Motor Size 38(w) x 124.8(h) (mm)

UXX Series

Ironless UXX Series

Continuous Force Range 141 - 846 (N)
Peak Force Range 700 - 4200 (N)
Speeds @ 300 Volts max - up to 5.1 (m/s)
Motor Size 48(w) x 124.8(h) (mm)

Vacuum Motors - Optimised heat Dissipation

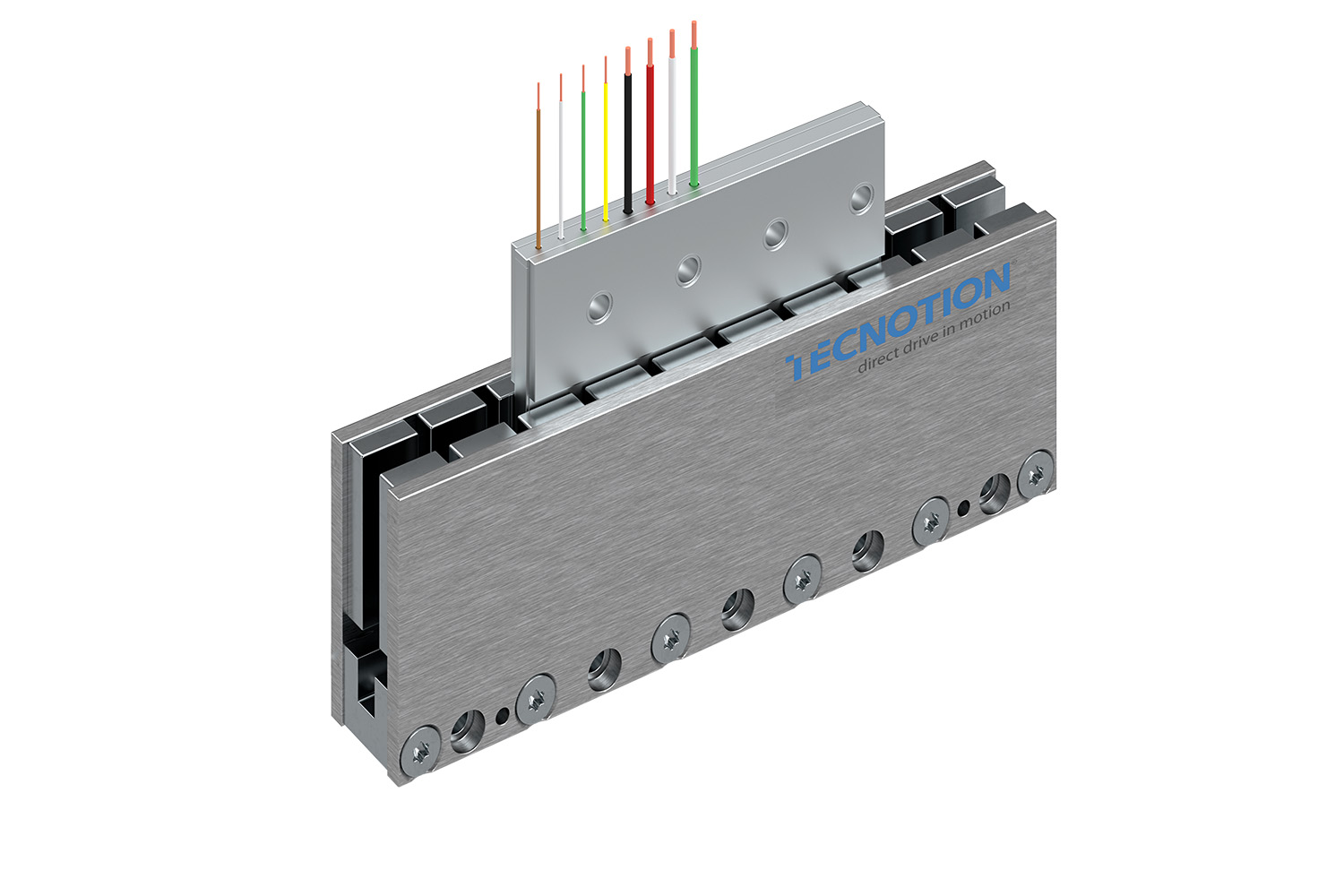

Vacuum Motor UMV G2 Series

Vacuum Motor UMV Gen 2

Continuous Force Range 22 - 87 (N)
Peak Force Range 100 - 401 (N)
Speeds up to 18.5 (m/s)
Motor Size 23.6(w) x 79(h) (mm)
Optimised for Low Heat Dissipation

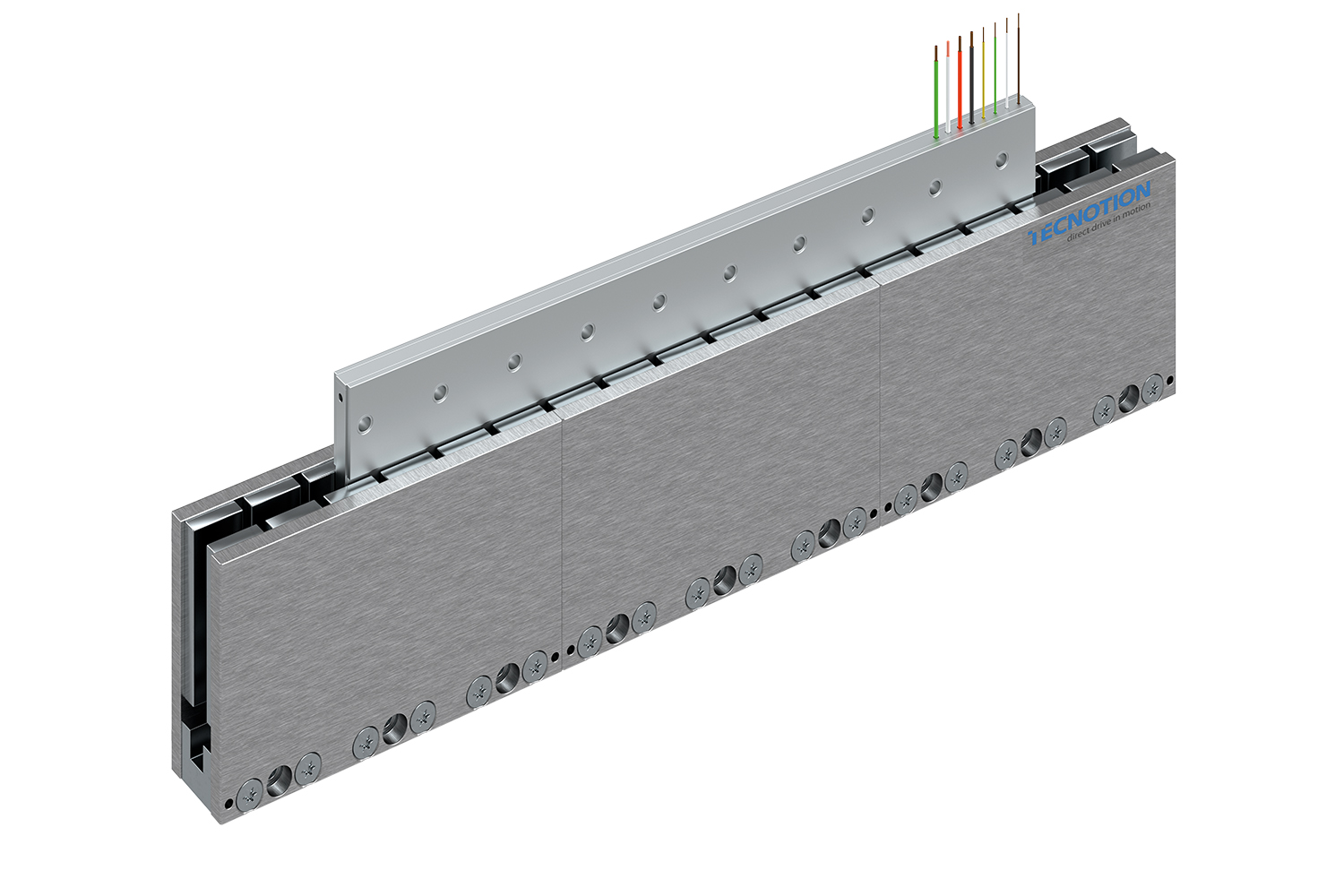

Vacuum Motor ULV G2 Series

Vacuum Motor ULV Gen 2

Continuous Force 165 (N)
Peak Force 720 (N)
Speeds up to 5.1 (m/s)
Motor Size 31(w) x 110.5(h) (mm)
Optimised for Low Heat Dissipation

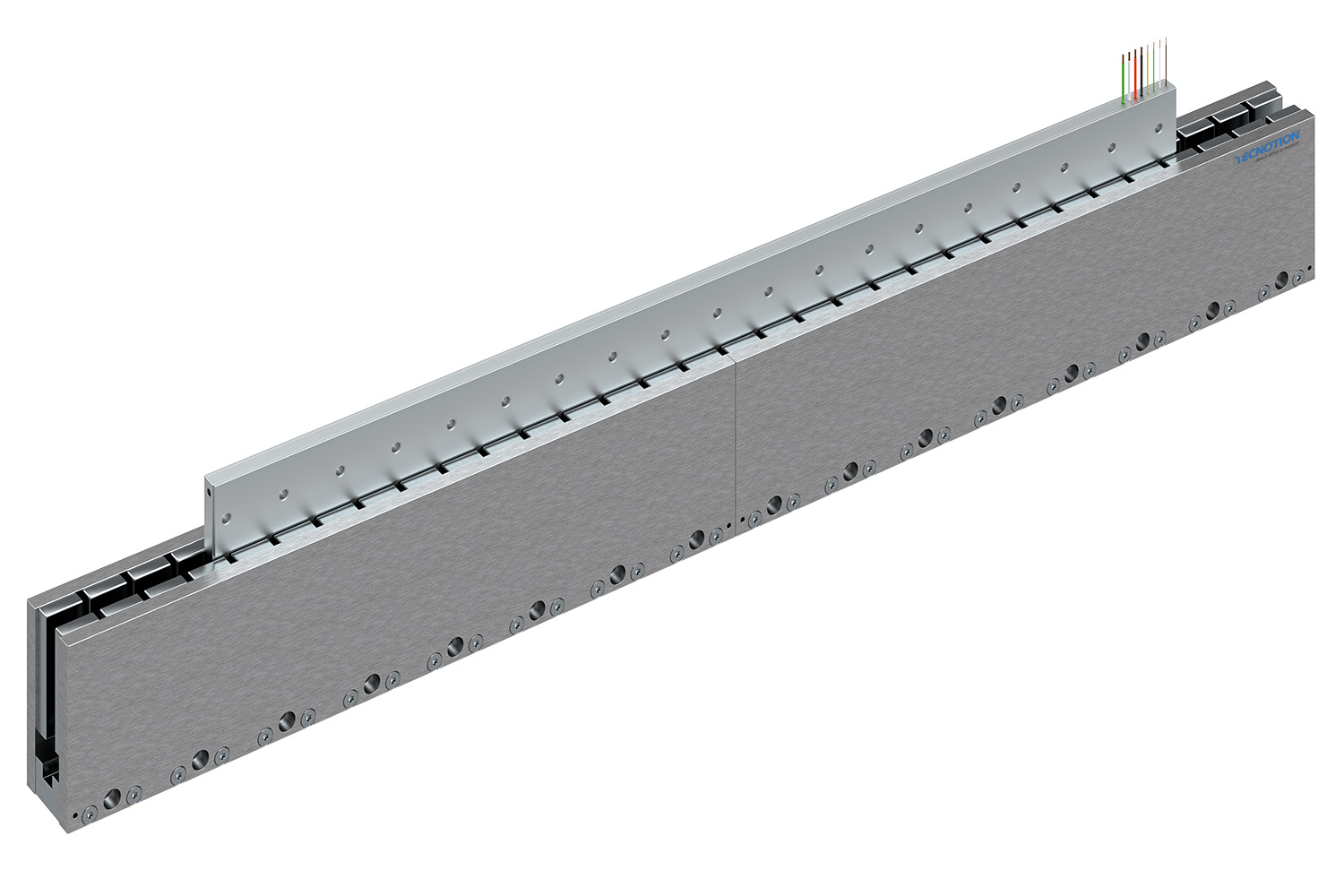

Vacuum Motor UXXV G2 Series

Vacuum Motor UXXV Gen 2

Continuous Force Range 233 - 698 (N)
Peak Force Range 1340 - 4020 (N)
Speeds up to 7.7 (m/s)
Motor Size 48.8(w) x 147(h) (mm)
Optimised for Low Heat Dissipation

Iron Core Linear Motors - High Force

TM Series

Iron Core TM Series

Continuous Force Range 60 - 360 (N)
Peak Force Range 105 - 630 (N)
Speeds up to 36.6 (m/s)
Motor Width 50 (mm)

TL Series

Iron Core TL Series

Continuous Force Range 200 - 1600 (N)
Peak Force Range 400 - 3200 (N)
Speeds up to 7 (m/s)
Motor Width 80 (mm)

TB Series

Iron Core TB Series

Continuous Force Range 760 - 1900 (N)
Peak Force Range 1600 - 4000 (N)
Speeds up to 6 (m/s)
Motor Width 130 (mm)

TBW Series

Iron Core TBW Series

Continuous Force Range 1200 - 3000 (N)
Peak Force Range 2400 - 6000 (N)
Speeds up to 6 (m/s)
Motor Width 130 (mm)
Water cooled variant of the TB series.

Torque Motors - High Dynamic Performance

OTR 65 Series

Torque QTR 65 Series

Continuous Torque 0.29 - 2.31 (Nm)
Peak Torque 0.42 - 3.82 (Nm)
Speed @ max voltage up to 28000 (rpm)
Speed @ 48 Volts - up to 5735 (rpm)
Motor Outside diameter 65 (mm)
Motor Inside diameter 17 (mm)
Optimized for low voltage applications

OTR 78 Series

Torque QTR 78 Series

Continuous Torque 0.84 - 7.57 (Nm)
Peak Torque 0.42 - 3.82 (Nm)
Speed @ max voltage up to 23000 (rpm)
Speed @ 48 Volts - up to 2757 (rpm)
Motor Outside diameter 78 (mm)
Motor Inside diameter 29 (mm)
Optimized for low voltage applications

OTR 105 Series

Torque QTR 105 Series

Continuous Torque 1.4 - 12 (Nm)
Peak Torque 2.9 - 28.4 (Nm)
Speed @ max voltage up to 11399 (rpm)
Speed @ 48 Volts - up to 3300 (rpm)
Motor Outside diameter 105 (mm)
Motor Inside diameter 56 (mm)

OTR 133 Series

Torque QTR 133 Series

Continuous Torque 2.6 - 21.9 (Nm)
Peak Torque 3.8 - 35.3 (Nm)
Speed @ max voltage up to 10807 (rpm)
Speed @ 48 Volts - up to 1641 (rpm)
Motor Outside diameter 133 (mm)
Motor Inside diameter 84 (mm)

OTR 160 Series

Torque QTR 160 Series

Continuous Torque 4.1 - 36.3 (Nm)
Peak Torque 6.2 - 58.3 (Nm)
Speed @ max voltage up to 6663 (rpm)
Speed @ 48 Volts - up to 965 (rpm)
Motor Outside diameter 160 (mm)
Motor Inside diameter 111 (mm)

OTL 210 Series

Torque QTL 210 Series

Continuous Torque 65 - 142 (Nm)
Peak Torque 140 - 281 (Nm)
Speed @ max voltage up to 716 (rpm)
Motor Outside diameter 210 (mm)
Motor Inside diameter 140 (mm)

OTL 230 Series

Torque QTL 230 Series

Continuous Torque 67 - 147 (Nm)
Peak Torque 140 - 281 (Nm)
Speed @ max voltage up to 709 (rpm)
Motor Outside diameter 230 (mm)
Motor Inside diameter 140 (mm)
Water Cooling for high duty cycles

OTL 290 Series

Torque QTL 290 Series

Continuous Torque 140 - 305 (Nm)
Peak Torque 316 - 632 (Nm)
Speed @ max voltage up to 306 (rpm)
Motor Outside diameter 290 (mm)
Motor Inside diameter 220 (mm)

OTL 310 Series

Torque QTL 310 Series

Continuous Torque 151 - 331 (Nm)
Peak Torque 316 - 632 (Nm)
Speed @ max voltage up to 298 (rpm)
Motor Outside diameter 310 (mm)
Motor Inside diameter 220 (mm)
Water Cooling for high duty cycles

OTL 385 Series

Torque QTL 385 Series

Continuous Torque 407 - 560 (Nm)
Peak Torque 833 - 1111 (Nm)
Speed @ max voltage up to 231 (rpm)
Motor Outside diameter 385 (mm)
Motor Inside diameter 280 (mm)
Water Cooling for high duty cycles

OTL 485 Series

Torque QTL 485 Series

Continuous Torque 659 - 907 (Nm)
Peak Torque 1342 - 1789 (Nm)
Speed @ max voltage up to 138 (rpm)
Motor Outside diameter 485 (mm)
Motor Inside diameter 366 (mm)
Water Cooling for high duty cycles
