Stroke 150mm

Cycles per Min 240

Load 6Kg

Speed 700mm/s

Repeatability 0.01mm

The ZU40 is a compact high precision actuator for linear and rotary motion. Designed to be combined with the HG60 gantry to give full 4 axis motion.

The fast and compact ZU40 range has feature such as payloads of up to 2kg and velocity of 700 mm/s with repeatability 0.01 mm.

Related Downloads

Prev Next

ZU40 fitted to HG0 Gantry

ZU40 fitted to HG0 Gantry

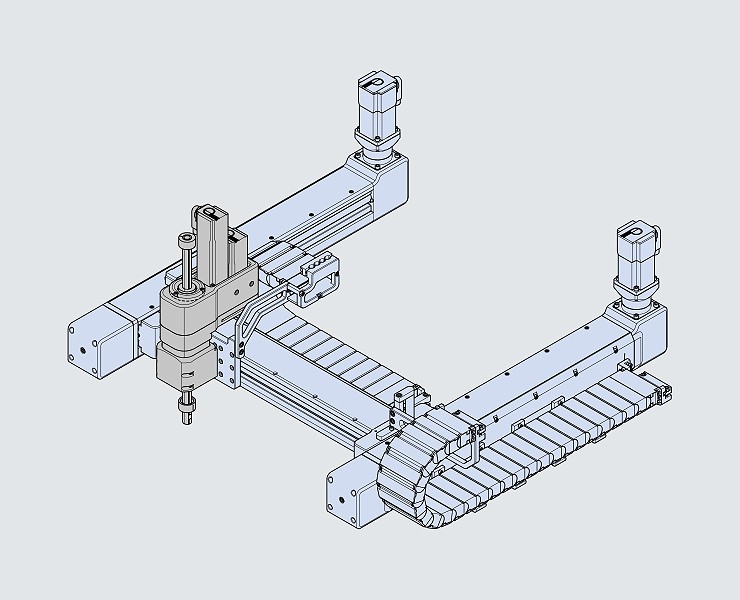

ZU40 on Track mounted on GD60 Gantry

ZU40 on Track mounted on GD60 Gantry
ZU40 fitted to HG0 Gantry

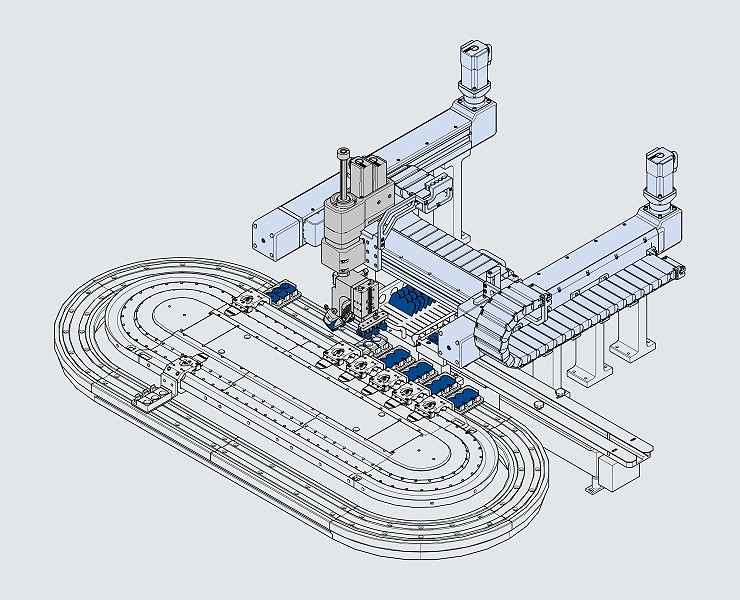

ZU40 on Track mounted on GD60 Gantry

Coming Soon…

…We are currently working on our CAD Configurator service.

With our CAD Configurator, you will be able to easily specify the linear actuator required for your project and download CAD files ready for use in your designs.

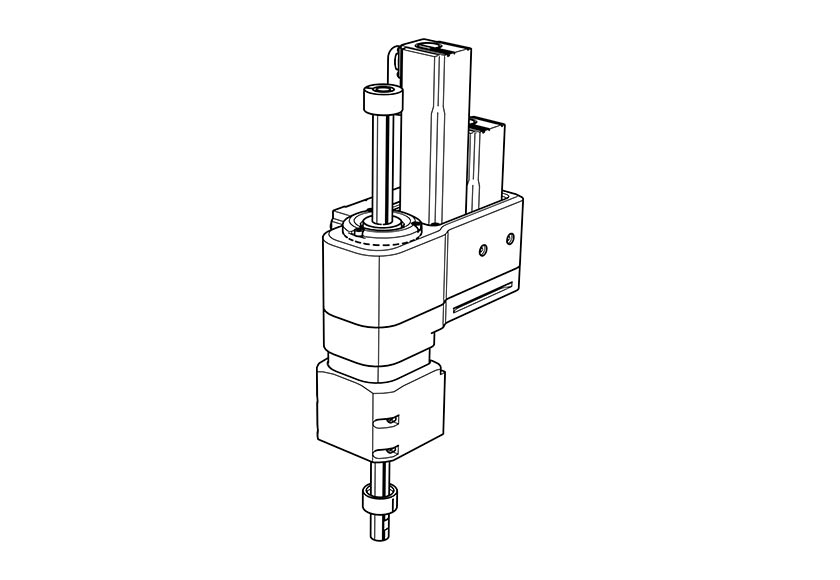

Cad Zu

Coming Soon…

…We are currently working on our CAD Configurator service.

With our CAD Configurator, you will be able to easily specify the Gantry required for your project and download HG-80 Gantry CAD files ready for use in your designs.

CAD Request

Features

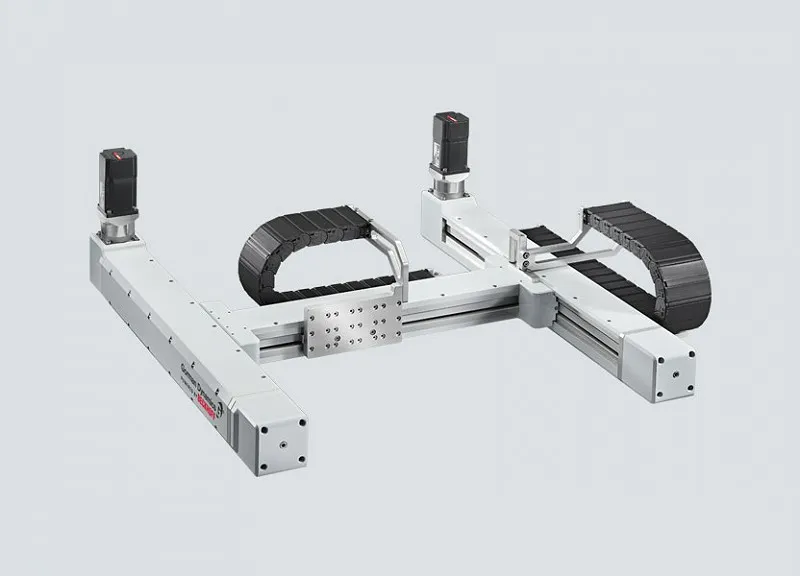

Fi Gantry Smart Design W600

Smart Design

  • Hollow shafts for easy wiring to the end of arm tooling eliminating obstacles in the work area.

  • Combined linear and rotary actuator enables flexible product handling.

  • Special compact design enables multiple units to be combined for increased efficiency.
Universal Controller

Universal Controller

  • Powered by Beckhoff provides field proven industrial motion control.

  • Integrated safety using Fail Safe over EtherCat (FSoE).

  • Modular controller can be expanded up to 54 Axis.

  • Unique universal controller is one single platform to control for all motion products.

  • Smart design with open architecture makes it comparably faster to integrate motion into a project.
Easy Teach Software

Easy Teach Software

  • Teachable software minimises the complexity of programming and integration greatly simplifying setup.

  • Easily taught sequences utilise built in high performance kinematic models to optimise motion profiles, shortening cycle times.

  • Flexible interpolation groups allow synchronised motion between any axes and robot components.

  • Run multiple sequences simultaneously, with easy signalling between sequences.

  • Control sequence timing with digital I/O, makes interfacing with existing machinery simple.

  • Payload management optimises performance and ensures 100% duty cycle.

  • Easy teach Software allow all 54 axes, single or multi-axis robots and digital I/O to be seamlessly controlled.
